Do YOU Really need a new charger?  Trying to charge dead batteries will not work!
There has to be a minimum voltage in the batteries or the charger will not work!
Older Lester chargers need about 70% of normal charge
 and the newer chargers made beginning in 2004 need to sense only 5 volts
For the Quick Chargers - on boards 50% - 10 volts on the portables

THE DESTRUCTION OF
AMERICA IS OVER 50%
 COMPLETE!  Do not FEAR
keep looking UP!  The answer
is knowing and loving and
declaring Jesus Christ!!!
We were born with an autopilot set toward Hell. It is nothing to take lightly - Hell is the single greatest tragedy in the universe - REPENT and Choose Christ Today!

Up
Daily Success is Possible
Lester Battery Chargers
Lester Links Battery Chargers
Lester Summit Battery Chargers
Lester Charger Parts
Quick Charge Battery Chargers
ChargePlus Battery Chargers
DPI Chargers, Inverters and Converters
IOTA Chargers/Converters
PowerMAX Converters and Chargers
Pro Charging Systems - Dual Pro Chargers
Club Car Chargers
Cushman Chargers
EZGO Chargers
Taylor-Dunn Chargers
Yamaha Chargers
Charger Controller
Prestolite Charger Parts
Battery Chargers
Thunderbull Battery Chargers
Shopping Cart Bypass Page
Solution Graphics Chat with me

  Lester p/n OEN p/n MFD Price
02002S
Manufacturer & Part Number
CLUB CAR 1012000
CLUB CAR 1012105
COLUMBIA H/D  66507-69
CART PARTS  CP1012105
CUSHMAN 815955
KARRIOR 769-10
LEGEND 9868
NOLAND 604
  12 Hour Timer

1211
List $195
$79.95 delivered
02026S
CLUB CAR	1012115
COLUMBIA H/D 66509-69
CART PART CP28109-G01
CUSHMAN	820199
CUSHMAN	820200
CUSHMAN	820201
CUSHMAN	820202
CUSHMAN	820203
CUSHMAN	820631
EZGO	11560-G1
EZGO	11560-G2
EZGO	17077-G1
EZGO	17122-G1
EZGO	28109-G01
FOREPAR	SP17077-G1
NORDSKOG	70185
NORDSKOG	72185
PARGO	3295
TAYLOR-DUNN 79-902-10

Fits Lester 8650, 8600


20.5MFD
660VAC

3405
List $79

$49.99
delivered
48 states

Canada
$69.99
plus $23.99 shipping





02390S
CLUB CAR	1012095
COLUMBIA H/D 66516-76
CART PARTS CP1012095
CUSHMAN	823749
CUSHMAN	825058
FOREPAR	5-026
KARRIOR	769-76
LEGEND	9864
NOLAND	02390S
NORDSKOG	2390
NORDSKOG	70165
NORDSKOG	70355
NORDSKOG	72165
PARGO	7420
TAYLOR-DUNN 79-902-00
Fits Lester 1791-, 14390,
13165, 99800, 9700, 9695,
9611, 9513, 9475, 9080,
9032, 9028, 9027, 8946,
7850, 7710, 6730, 6720,
6430, 15765, 16060
6 MFD

660VAC


3425

List $49

$49.99
delivered
48 states

Canada
$39.99
plus $23.99 shipping





03820S Fits Lester 13115, 9200 2 MFD
660VAC

3437
LIST $49
$44.99
plus $9.95 shipping

Canada
$44.99
plus $23.99 shipping




04142S
CLUB CAR	1015910
CART PARTS CP1015910
EZGO	603210
FOREPAR	5-027

16500-xx

EZGO p/n 28105-G01

3 MFD
660VAC

3438
List $61
$59.99
plus $9.95 shipping

Canada
$59.99
plus $23.99 shipping




04401S
CLUB CAR	1015939
FOREPAR	5-028
NORDSKOG	75004

Fits Lester 16500, 14100,
9700, 7710-12/1990 and
newer, ClubCar 1011885

4 MFD
660VAC

3519
List $49
$44.99
plus $9.95 shipping

Canada
$44.99
plus $23.99 shipping




Relay Asm p/n 04484S

in charger 06430
  36 Volt Relay Asm
Old Style
pre 2004
$49.99
plus $6.99
shipping

Canada
$49.99
plus $34.99
shipping



06357S
6357S


07710
Used in 07710-xx 36 Volt Timer Asm

3528
List $201
$199.99
plus $9.99
shipping

example
06593S
6593S


07030
Used in 07030-xx

220-240 volt charger

36 Volt Timer Asm


List $201
$199.99
plus $9.99
shipping
  07782S
7782

07105
Used in 07105-xx 24 Volt Timer Asm
220v-240v

$219.99
plus $9.99
shipping
08774S
TAYLOR-DUNN 79-831-10
Lester 40 amp fuse

Used in
 9600, 9513, 9475, 9080, 12315
40 amp dual link
fuse.

3433

List $29

$34.99 plus $9.99
shipping

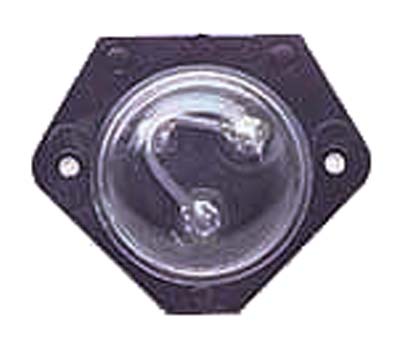

08776S
CLUB CAR  1012101
CUSHMAN	883844
CUSHMAN	883845
EZGO	31567-G1
EZGO	603207
FOREPAR	SP603207
FOREPAR	5-060
KARRIOR	769-62
LEGEND	9866
NOLAND	08776S
NORDSKOG  72204
NORDSKOG  73844
PARGO	7422
TAYLOR-DUNN 79-831-00
Some call this a 25
amp fuse, but Lester
calls it a 30 amp fuse
also used in E-Series
chargers - 25940, 25970,
26010, 26040, 26070,
27070 & X-Series
chargers - 26900, 27000,
27010, 27060.
15765. 16060
30 amp dual link
fuse.
For Club Car
electric 1985-
up 36-volt.
Also used in
24 & 48 volt
chargers

3428

List $29

$23.99
plus $5.99
shipping


Canada
$23.99 plus $23.99
shipping





08799S
Lester 50 amp fuse 50 amp dual link
fuse.
$44.99
plus $9.99
shipping
09664S
9664S
Manufacturer & Part Number
CUSHMAN	885086
CUSHMAN	885627
CUSHMAN	888063
TAYLOR-DUNN  79-805-65
TAYLOR-DUNN  79-805-68
  48 Volt Timer Asm

3541
List $201
$199.99
plus $9.99
shipping
  10047S   Relay board
for Charger p/n 15765, 16060 & 16410
  24 Volt, 30 Amp - Relay $49.99
plus $9.99
shipping
  12296S  Timer - Relay board
for Charger p/n 15765 & 16060
This is a SCR charger - do not replace this
board without testing the SCR's - will blow the
board - SCR trouble Shooting Guide
APA model 388120 36 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
  12420S  Timer - Relay board
for Charger p/n 12380
for Genie Z-2030 - 120 volts
  48 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
  12920S  Timer - Relay board
for Charger p/n 12800
for Tennant
  36 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
  13665S  Timer - Relay board
for Charger p/n 13570
48 volt - 45 amps
  48 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
  13670S  Timer - Relay board
for Charger p/n 13640 & 13650
36 volt - 60 amps
  36 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
  13675S  Timer - Relay board
for Charger p/n 13620 & 13630
24 volt - 40 or 60 amps
  36 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
  13680S  Timer - Relay board
for Charger p/n 13600 & 13610
12 volt - 50 or 75 amps
  36 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
14385S   42 Volt Timer Asm

3569
List $201
$199.99
plus $9.99
shipping
  14480S  Timer - Relay board
for Charger p/n 19460 24 volt - 25 amps
  24 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
14930S

Dual Voltage

Used in 18740

  48 Volt Timer Asm

List $219
$199.99
plus $9.99
shipping
  15235S

Taylor Dunn

Used in 16340

  72 Volt Timer Asm

List $219
$199.99
plus $9.99
shipping

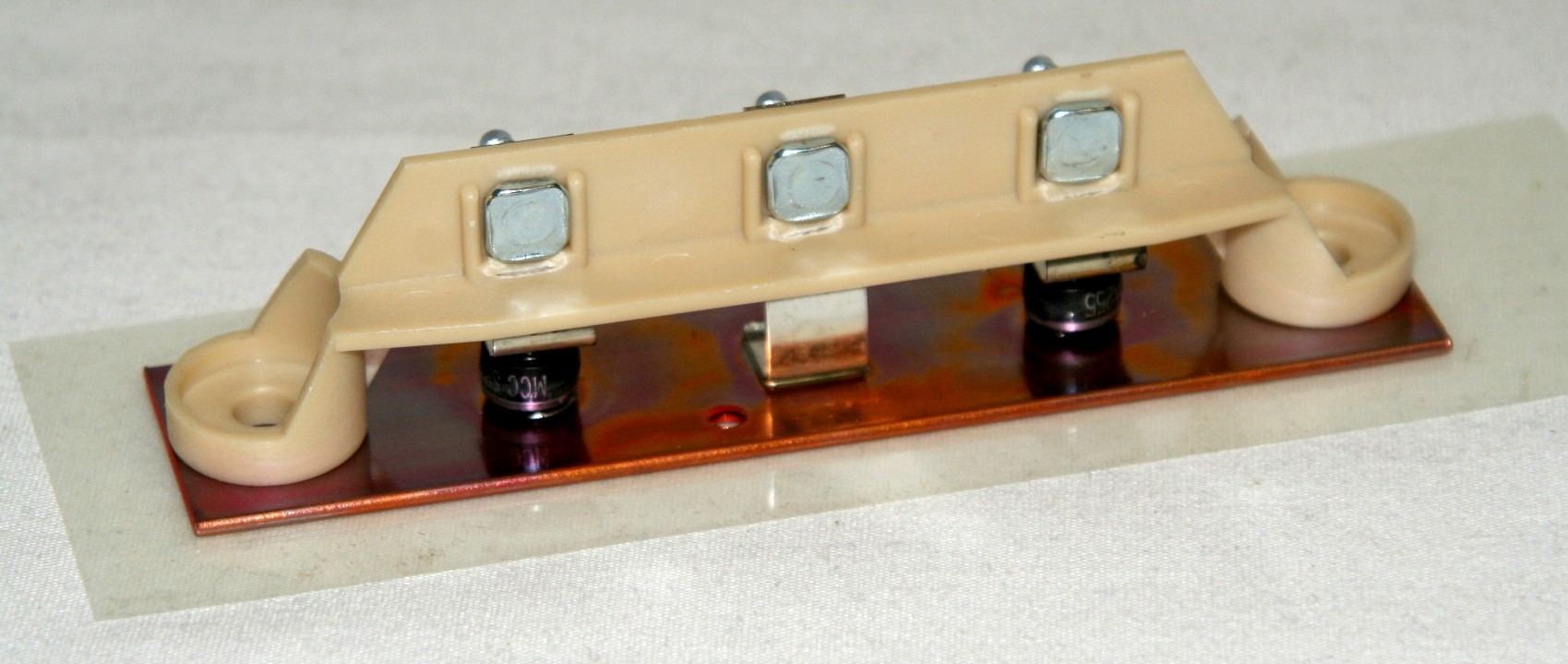

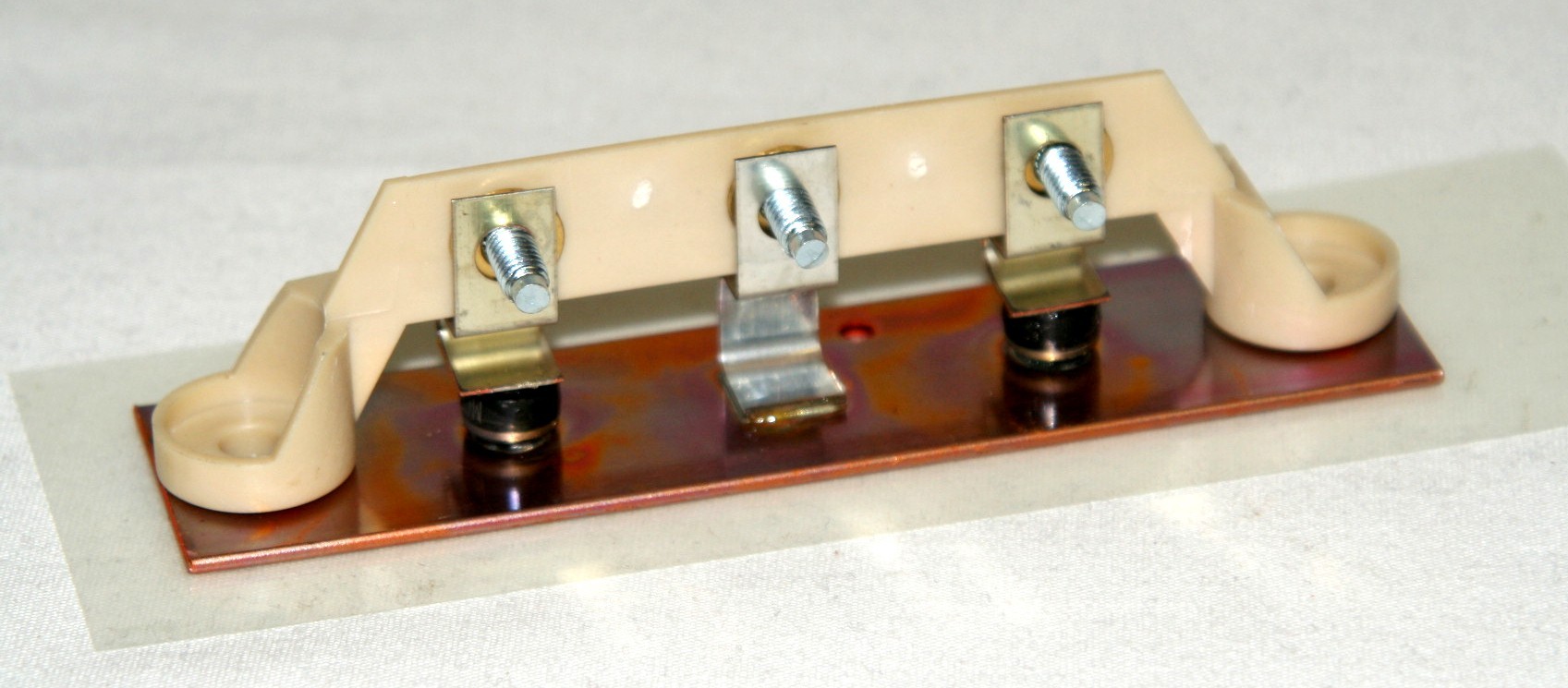

16354S
Clubcar - 1012102
Clubcar - 1012109
Clubcar - 1015914
Clubcar - L8385
Legend - 9865
Lester - 16354S
Noland - 9653S
Nordskog - 70365
Nordskog - 70425
Nordskog - 70015
Nordskog - 70295
Nordskog - 70373
Columbia - 66505-76
Also replaces 28072S
used in 16340-00

Pargo - 7421
Taylordunn - 79-749-00
Taylordunn - 79-749-11
Taylordunn - 79-749-13
Cushman - 886435
Cushman - 883840
Cushman - 883215
Karrior - 769-52
36/48-volt
heat sink
assembly with
diodes. For most
Lester chargers.
List $50

3426

$39.99 delivered

Canada
$66.99
delivered

Other Countries
$83.99









16390S

ClubCar 1015906

Used in 14100 & 16500

3502 36 Volt Timer Asm

List $201
$199.99
plus $9.99
shipping
  16460S   - Timer ASM

Used in 16360 & 19490

  36 Volt Timer Asm

List $209

$209.99
plus $9.99
shipping in US
  16946S   - DIODE ASM
usually 2 required

Used in 16130, 17640

Clarke 43301 36/48-volt
heat sink
assembly with
diodes
$59.99
delivered
  17675S

Used in 17910

  48 Volt Timer Asm

List $201
$199.99
plus $9.99
shipping
  18805S

Used in 18730-00, 18730-90S

  12 Volt Timer Asm

List $ 195
$189.99
plus $9.99
shipping
20500S  Timer Kit  48V For
20330-95
20330-98
48 Volt Timer Asm

List $201
$199.99
plus $9.99
shipping
Relay Asm p/n 21238S
used on timer 14870S
in charger 14100
  36 Volt Relay Asm $49.99
plus $6.99
shipping

Canada
$49.99
plus $34.99
shipping



21239S
CLUB CAR  1018286-01
CLUB CAR  1018286-01
FOREPAR  5-029B
FOREPAR  21239S
  48 volt
Power Relay
SPSTNO 30A

List $49

$49.99 delivered
  22535S used in 21710 Clarke 40520A 24 Volt Timer Asm

List $201
$199.99
plus $9.99
shipping
RELAY 22828S used in19490   36 Volt Relay Kit

List $69
$69.99
plus $9.99
shipping
Relay Asm p/n 23385S
used on timer 24800S, 24840S,
24920S, 24925S
in charger 13110

Taylor- Dunn 79-303-05 & 79-303-15

  24 Volt Relay Asm
3527
$49.99
plus $6.99
shipping

Canada
$49.99
plus $34.99
shipping

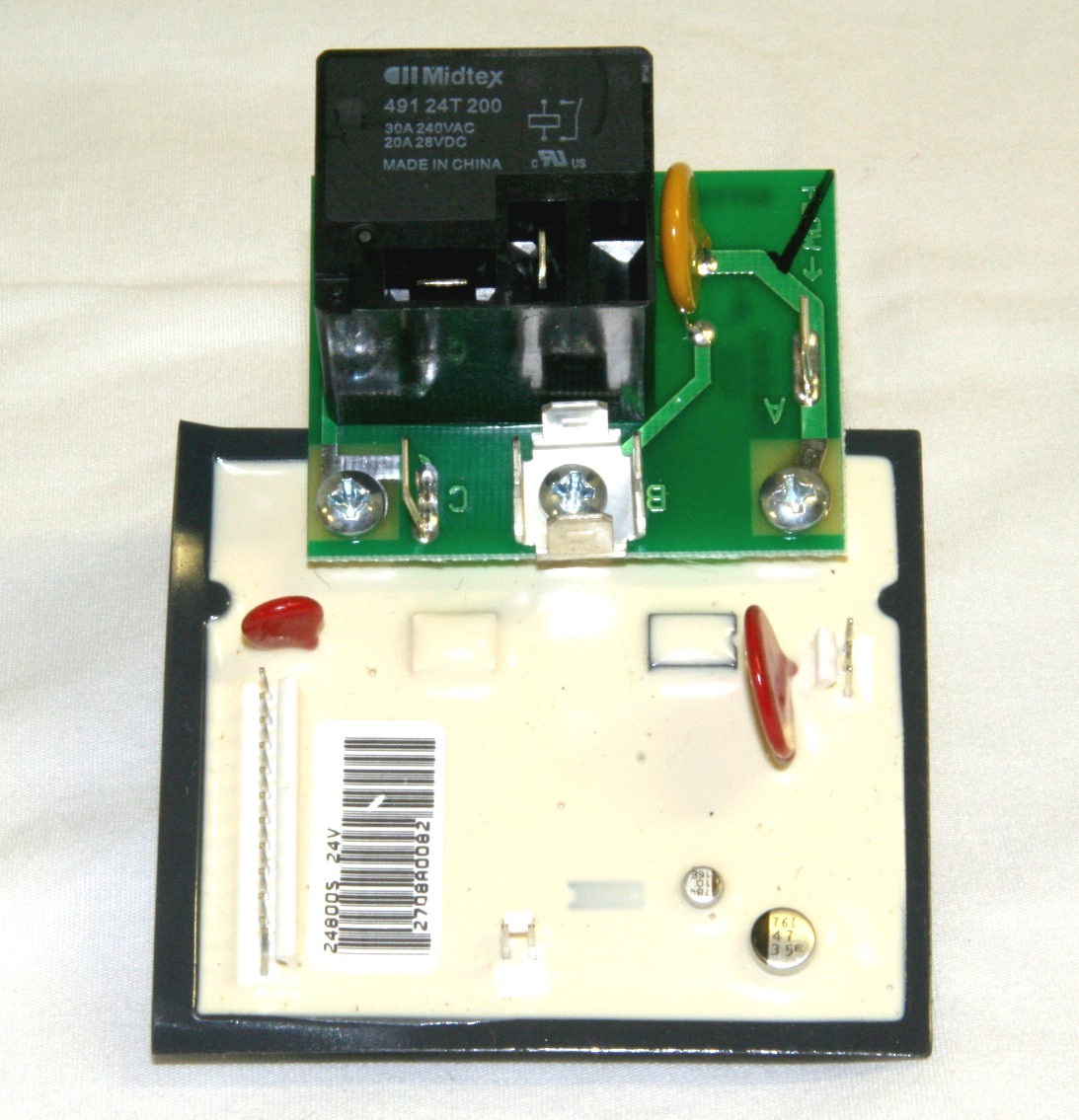

24800S   for 24 volt chargers - T/D 79-303-05
Replaces 09662S, 11890S, 11995S
20585S, 21805S
uses relay asm 23385S

Used in Cushman 887104 Charger Application

Manufacturer & Part Number
CUSHMAN	882891
CUSHMAN	887277
TAYLOR-DUNN  79-805-64
TAYLOR-DUNN  79-805-66
15660
16940
19460
19740
09513
09800

24 Volt Timer Asm

3400
List $201
$199.99
plus $9.99
shipping

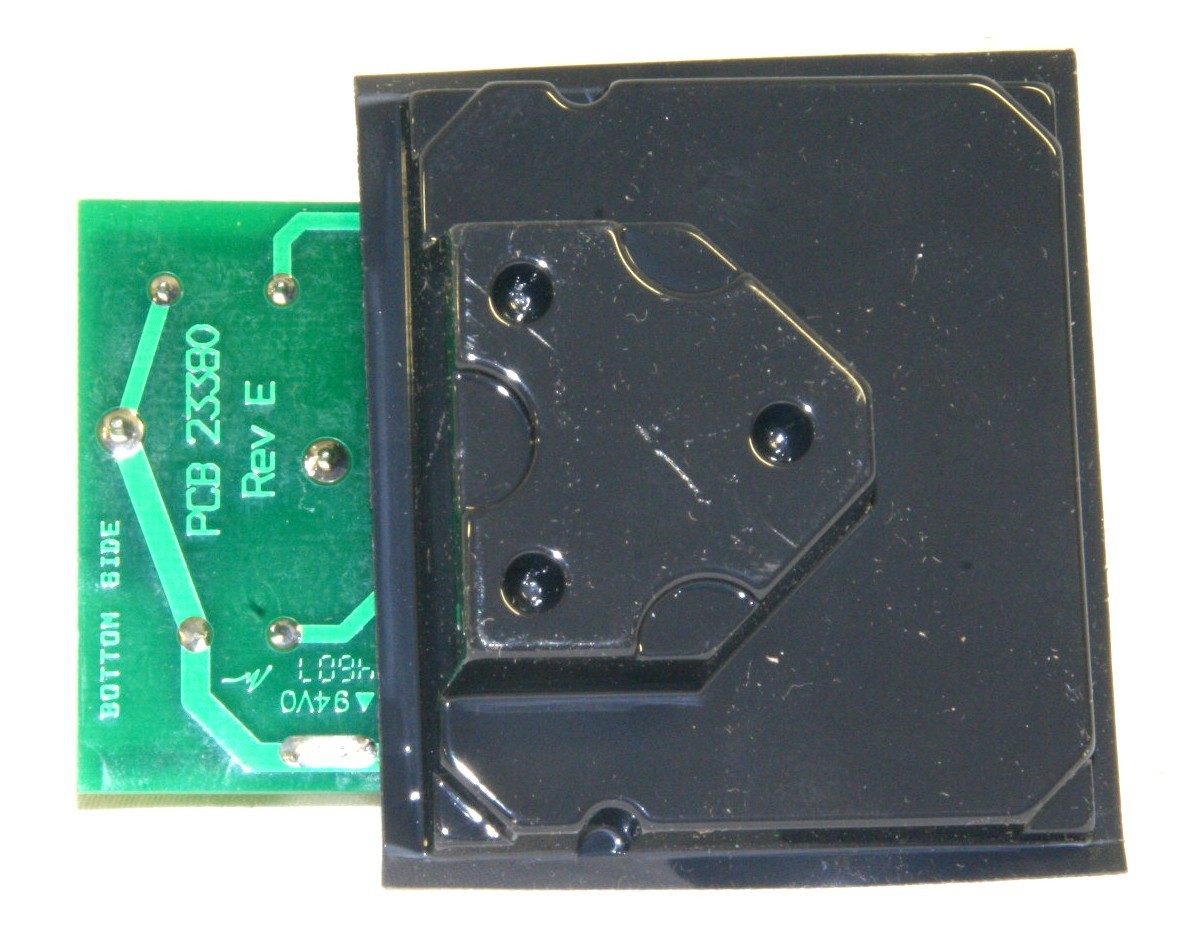

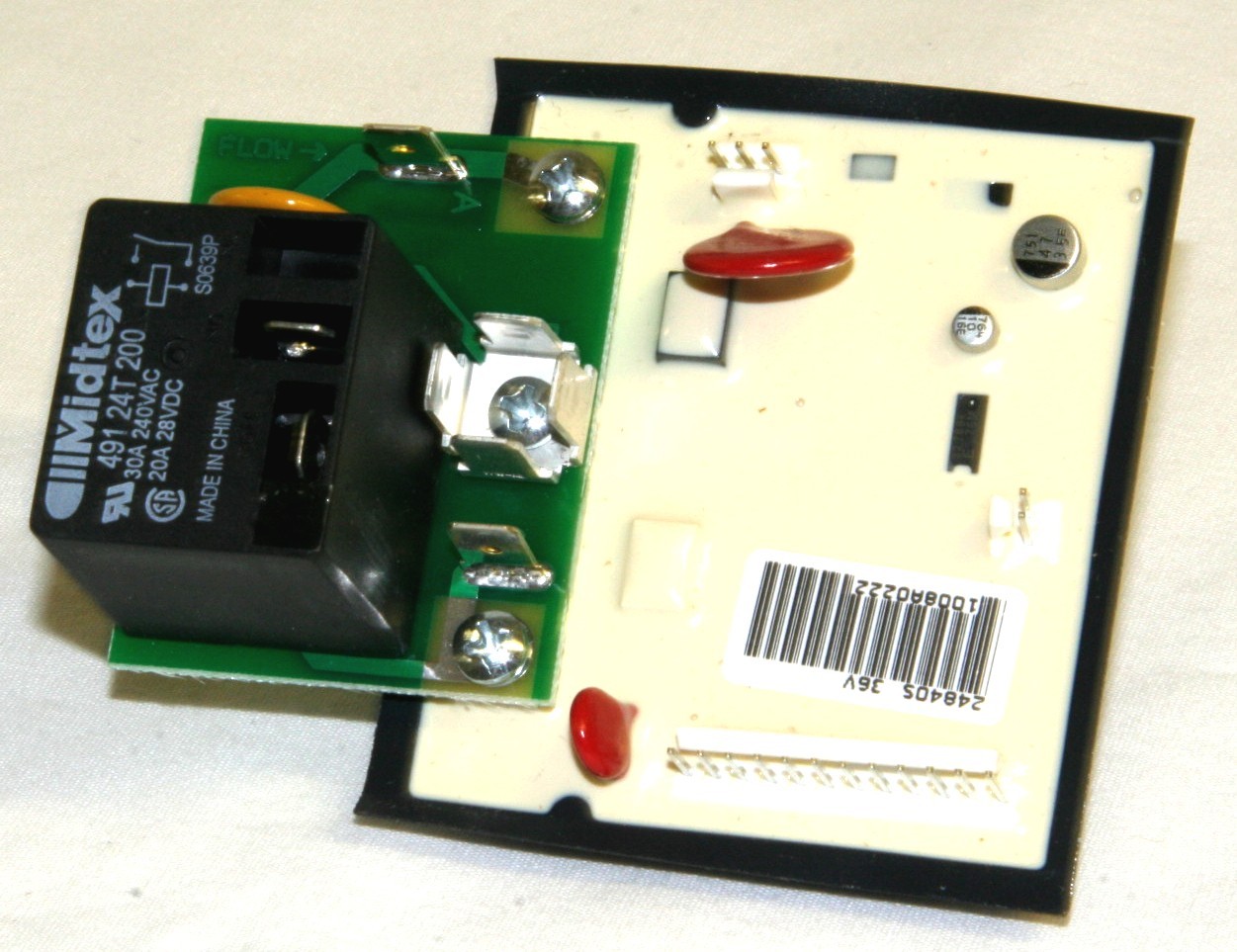

24840S   for 36 volt chargers  - T/D 79-303-15
Replaces 09685S, 15005S, 15470S
18635S, 22790S

uses relay asm 23385S

Manufacturer & Part Number
CLUB CAR	1010615
CUSHMAN	886886
NORDSKOG	75144
TAYLOR-DUNN  79-805-67 old #
TAYLOR-DUNN  79-805-76 new #
06430
09475
17090
36 Volt Timer Asm

3459
List $201
$199.95
plus $9.99
shipping
24920S New Style - for 24 volt chargers
Replaces 12955S, 13235S, 14345S
uses relay asm 23385S

Shelf style - DC plug as to be removed
from batteries each charge cycle.
13110
13165
13175

24 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
24925S
Replaces 06234S, 06357S, 09560S
12545S, 12575S, 14890S
uses relay asm 23385S

Manufacturer & Part Number
CLUB CAR 1011164
CLUB CAR 1012096
CART PARTS CP1012096
KARRIOR 769-16
LEGEND 9878
NOLAND 09560S
NORDSKOG     74234
TAYLOR-DUNN 79-805-63
07710
07850
09700
36 Volt Timer Asm

3457
List $201
$199.95
plus $9.99
shipping
25645S  Timer - Relay board
for Charger p/n 25890
  36 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
25655S  Timer - Relay board
for Charger p/n 25900
  36 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
25675S  Timer - Relay board
for Charger p/n 25920
  24 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping
25685S  Timer - Relay board
for Charger p/n 25910
  24 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping

25855S  Timer - Relay board
for Charger p/n 25930
  48 Volt Timer Asm
List $201
$199.99
plus $9.99
shipping

35554S  AC Surge Protector assembly for Charger p/n 25890, 25900,
25910, 25920 & 25930

This is an SCR charger - do not replace
board without testing the SCR's - will blow the
board - SCR trouble Shooting Guide

   AC Surge
Protector Asm
$19.99
plus $9.99
shipping

35394S  Heatsink assembly w/ SCR's
& wires for Charger p/n 25890, 25900,
25910, 25920 & 25930

This is an SCR charger - do not replace
board without testing the SCR's - will blow the
board - SCR trouble Shooting Guide

  24/48 Volt Heatsink Asm
List $99
$94.99
plus $9.99
shipping

38463S  Heatsink assembly w/ diodes's
& wires for Charger p/n 26580, 26610
Links and PowerDrive III

CC p/n 103517401

  48 Volt Dual
Diode Plate
Asm
List $89
$54.99
plus $9.99
shipping

27075-00S
Control Board Assembly
Timer Assembly
This is an SCR charger - do not replace
board without testing the SCR's - will
blow the board SCR trouble Shooting Guide
Used in most E-Series
chargers - 25940, 25970,
26010, 26040, 26070,

NEED SERIAL
NUMBER ALSO!

Control
Board
Assembly
$159.99 plus $14.99
shipping

27075-01S
Control Board Assembly
Timer Assembly
This is an SCR charger - do not replace
board without testing the SCR's - will
blow the board SCR trouble Shooting Guide
Used in  E-Series
charger - 27070,

NEED SERIAL
NUMBER ALSO!

Control
Board
Assembly
$159.99 plus $14.99
shipping

26815-00S
Control Board Assembly
Timer Assembly
This is an SCR charger - do not replace
board without testing the SCR's - will
blow the board SCR trouble Shooting Guide
Used in  most X-Series
chargers - 27000, 27010,
27030, 27050, 27060

NEED SERIAL
NUMBER ALSO!

Control
Board
Assembly
$159.99 plus $14.99
shipping

26815-01S
Control Board Assembly
Timer Assembly
This is an SCR charger - do not replace
board without testing the SCR's - will
blow the board SCR trouble Shooting Guide
Used in  X-Series
charger - 26900

NEED SERIAL
NUMBER ALSO!

Control
Board
Assembly
$159.99 plus $14.99
shipping

26815-02S
Control Board Assembly
Timer Assembly
This is an SCR charger - do not replace
board without testing the SCR's - will
blow the board SCR trouble Shooting Guide
Used in  X-Series
charger - 27020

NEED SERIAL
NUMBER ALSO!

Control
Board
Assembly
$159.99 plus $14.99
shipping
37204S
SCR Assembly Kit with
Heatsink Assy, SCR's & wires

This is an SCR charger - do not replace
board without testing the SCR's - will
blow the board SCR trouble Shooting Guide
Used in all E-Series
chargers - 25940, 25970,
26010, 26040, 26070,
27070 & X-Series
chargers - 26900, 27000,
27010, 27060.
SCR
Assembly
Kit
$99.99 plus $14.99
shipping
37082S
SCR Assembly Kit with
Heatsink Assy, SCR's & wires

This is an SCR charger - do not replace
board without testing the SCR's - will
blow the board SCR trouble Shooting Guide
Used in X-Series
chargers - 27030, 27050.
SCR
Assembly
Kit
$99.99 plus $14.99
shipping

27105-01S
Relay Kit Assembly
Used in X-Series
chargers - 26900, 27020
Relay Kit
Assembly
$69.99 plus $14.99
shipping

27105-02S
Relay Kit Assembly
Used in X-Series
chargers - 27010, 27030
Relay Kit
Assembly
$69.99 plus $14.99
shipping

27105-03S
Relay Kit Assembly
Used in X-Series
chargers - 27050, 27060
Relay Kit
Assembly
$69.99 plus $14.99
shipping

27105-04S
Relay Kit Assembly
Used in X-Series
charger - 27000
Relay Kit
Assembly
$69.99 plus $14.99
shipping

27105-09S
Relay Kit Assembly
Used in E-Series
charger - 27070.
Relay Kit
Assembly
$69.99 plus $14.99
shipping

27105-10S
Relay Kit Assembly
Used in E-Series
chargers - 26010, 26040
Relay Kit
Assembly
$69.99 plus $14.99
shipping

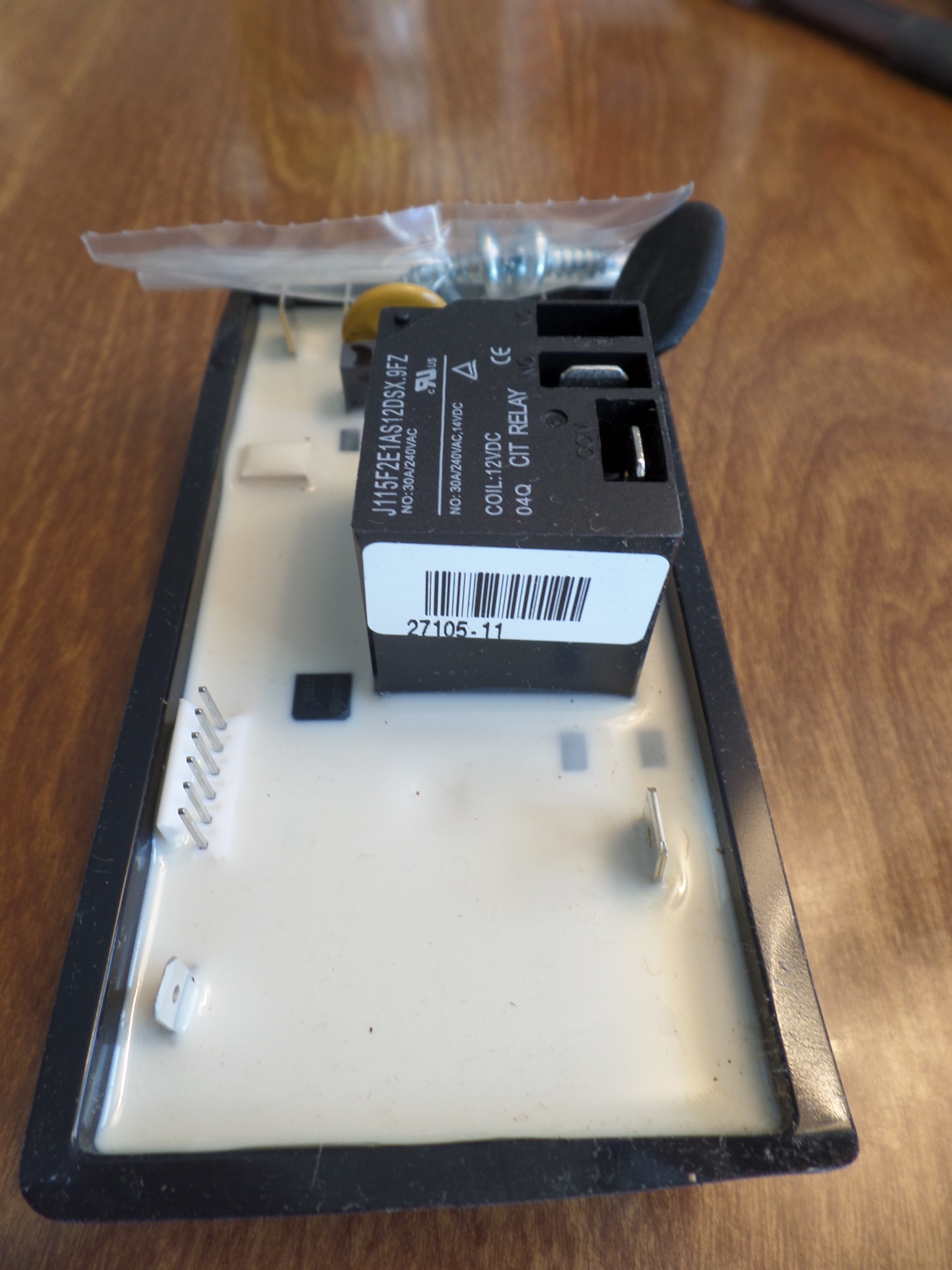

27105-11S
Relay Kit Assembly
Used in E-Series
chargers - 25940, 25970
Relay Kit
Assembly
$69.99 plus $14.99
shipping

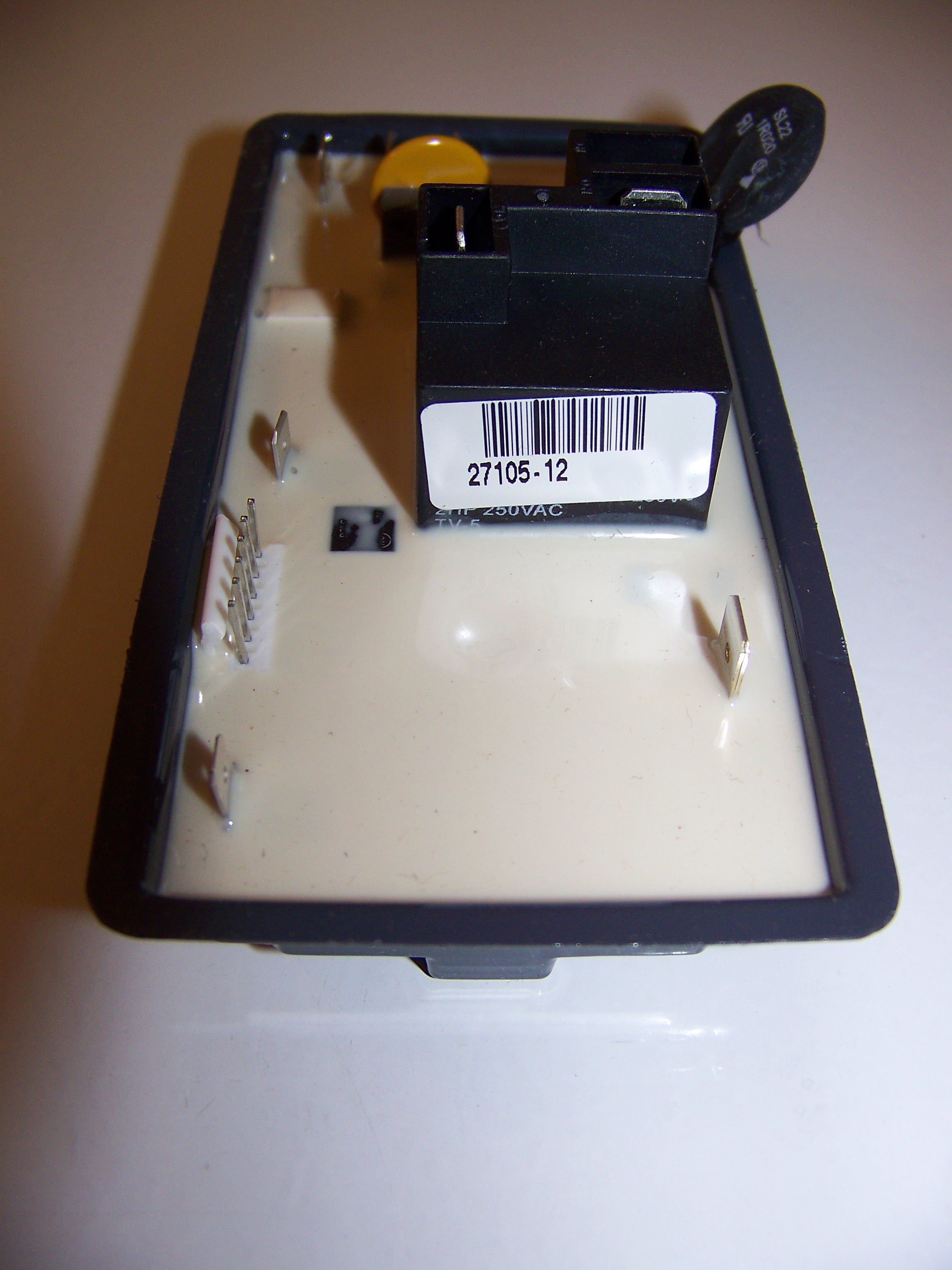

27105-12S
Relay Kit Assembly
Used in E-Series
charger - 26070
Relay Kit
Assembly
$69.99 plus $14.99
shipping


39424-01S
Control Board Assembly
Check SCR's before replacing
Used in E-Series II
charger - 28060
Control
Board
Assembly
$169.99 plus $14.99
shipping


39424-02S
Control Board Assembly
Check SCR's before replacing
Used in E-Series II
charger - 28070
Control
Board
Assembly
$169.99 plus $14.99
shipping


39424-03S
Control Board Assembly
Check SCR's before replacing
Used in E-Series II
charger - 28080
Control
Board
Assembly
$169.99 plus $14.99
shipping


39424-04S
Control Board Assembly
Check SCR's before replacing
Used in E-Series II
charger - 28090
Control
Board
Assembly
$169.99 plus $14.99
shipping


39424-05S
Control Board Assembly
Check SCR's before replacing
Used in E-Series II
charger - 28100
Control
Board
Assembly
$169.99 plus $14.99
shipping


39428-05S
Control Board Assembly
Check SCR's before replacing
Used in E-Series II
charger - 28100 -
EZ-GO RXV - 3 pin
Control
Board
Assembly
$169.99 plus $14.99
shipping

40067S
SCR & Heatsink Asm
This is an SCR charger - do not replace
board without testing the SCR's - will
blow the board SCR trouble Shooting Guide
Used in E-Series II
charger - 28060, 28070
28080, 28090
SCR &
Heatsink
Asm
$109.99 plus $14.99
shipping

40068S
SCR & Heatsink Asm
This is an SCR charger - do not replace
board without testing the SCR's - will
blow the board SCR trouble Shooting Guide
Used in E-Series II
charger - 28100
SCR &
Heatsink
Asm
$199.99 plus $14.99
shipping

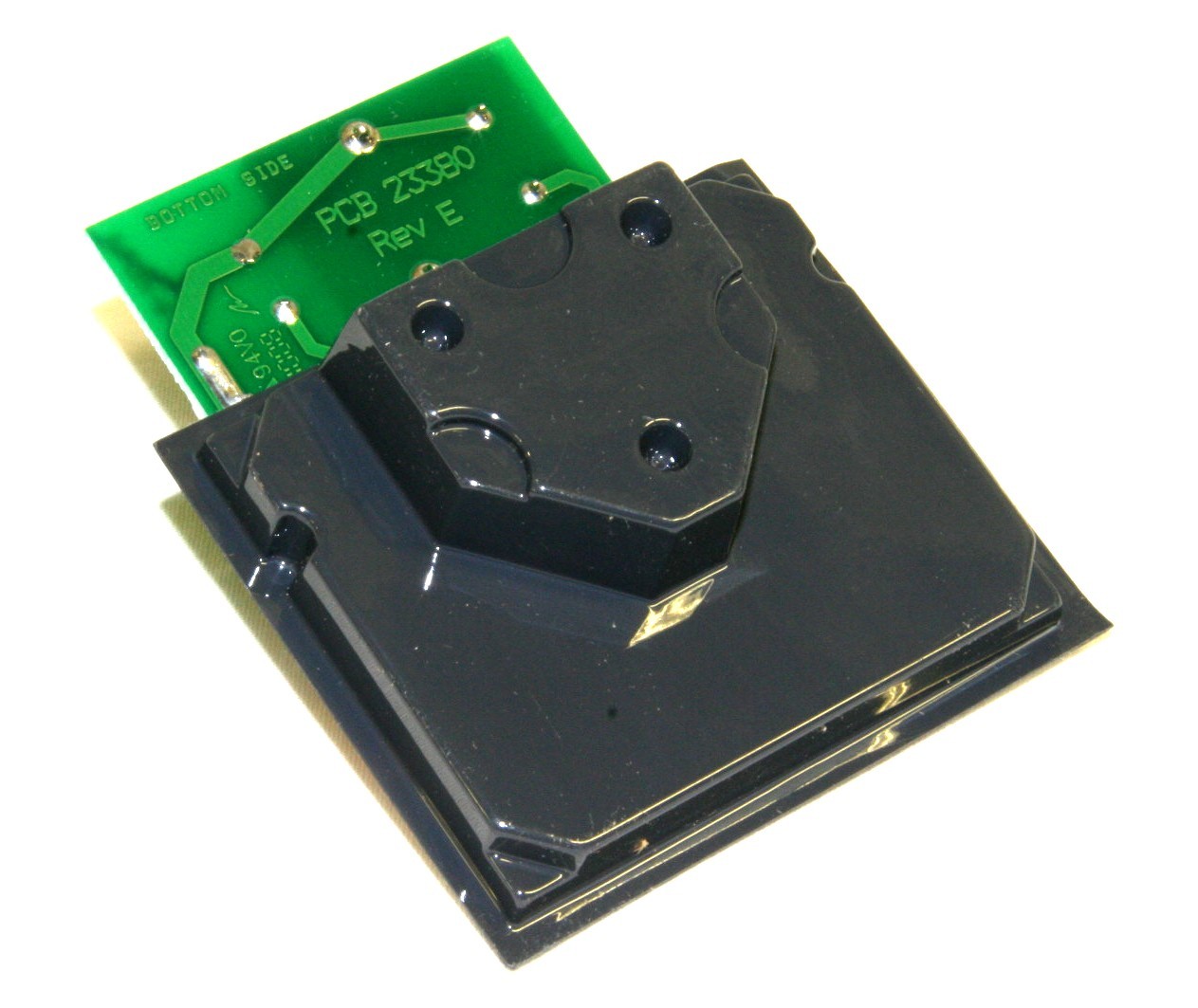

RELAY ASM

Nilfisk/Advance p/n 56206919

for Lester models           Advance#
12050                           56395101
12060                           56388502
15745                           56372190
15765                           56388120
15775                           56388119
  Relay Asm


List $65
$52.95
plus $5.95
Shipping
Nilfisk/Advance p/n 56373066

for Lester models           Advance#
12050                           56395101
12060                           56388502
15745                           56372190
15765                           56388120
15775                           56388119
  36 Volt Timer Asm


List $362
$269.99 delivered


Copyright 1998-2017, Lighthouse Enterprises      Privacy Policy    About Us  Contact Us    Shipping and Returns
  Prices are subject to change without notice due to errors on our part or price increases!
www.CentralVacuumMotor.com, www.CartPartsRUS.com, www.FloorScrubberPartsDepot.com
 www.FloorSweeperPartsDepot.com, www.VacuumMotorDepot.com, www.lighthouseenterprises.us

www.SmallEnginePartsDepot.com
