Dual Pro - Industrial Series Chargers
Seeking to honor the Lord Jesus Christ in all our business dealings since 1998
 Division of Lighthouse Enterprises

Let us help you find the right charger for your application

WARNING!!
Do you REALLY need a new charger? Trying to charge dead batteries will not work!
There has to be a minimum voltage in the batteries or the charger will not work!
Older Lester chargers need about 70% of normal charge

and the newer chargers made beginning in 2004 need to sense only 5 volts
Quick Charge on board chargers need 50%
Quick Charge portables need 10 volts

 NEW SUMMIT II Chargers require 12 volts to work!



Home | Shipping & Returns | About Us | Contact Us |



Home
Up
Daily Success is Possible
Lester Summit II Battery Chargers
Lester Charger Parts
Lester Battery Chargers
Taylor-Dunn Chargers
Yamaha Chargers
PBM Battery Chargers
Quick Charge Battery Chargers
ChargePlus Battery Chargers
DPI Chargers, Inverters and Converters
PowerMAX Converters and Chargers
Canada Shipping and other Countries
Solution Graphics

DUAL PRO 6 Amp Industrial  Series Waterproof Battery Charger - Single Bank 12V

DUAL PRO Part Number IS1



Plug Style ring
AC Input 90-264 volts
Input Frequency 47-63 Hz
Output Voltage Charging 14.7V
Float  13.3V
Maximum Current 6 amps
Operation Temperature -30 to 65C
Charge Style Fully Automatic
Dimensions 3.0" x 4.5" x 6.5"
Weight - lbs 3
Warrantee 2 Year
AC Cord Length 3ft

$127.00
plus $14.95 shipping

DC Cable Length 5ft

Installation and Operating Instructions



DUAL PRO 6 Amp Industrial  Series Waterproof Battery Charger - Double Bank 12V - 24V

DUAL PRO Part Number IS2



Plug Style ring
AC Input 90-264 volts
Input Frequency 47-63 Hz
Output Voltage Charging 14.7V
Float  13.3V
Maximum Current 6 amps
Operation Temperature -30 to 65C
Charge Style Fully Automatic
Dimensions 3.0"H x 6.5"W x 7.25"L
Weight - lbs 5
Warrantee 2 Year
AC Cord Length 3ft

$177.00
plus $16.95 shipping

DC Cable Length 5ft

Installation and Operating Instructions

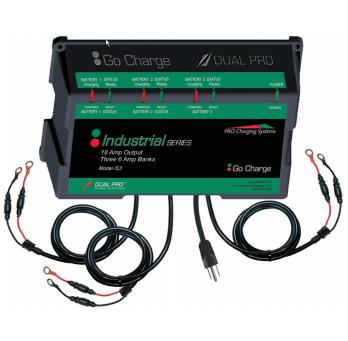

DUAL PRO 6 Amp Industrial  Series Waterproof Battery Charger - Triple Bank 12V - 36V

DUAL PRO Part Number IS3



Plug Style ring
AC Input 90-264 volts
Input Frequency 47-63 Hz
Output Voltage Charging 14.7V
Float  13.3V
Maximum Current 6 amps
Operation Temperature -30 to 65C
Charge Style Fully Automatic
Dimensions 3.0"H x 6.5"W x 10.25"L
Weight - lbs 7
Warrantee 2 Year
AC Cord Length 3ft

$240.00
plus $20.95 shipping

DC Cable Length 5ft

Installation and Operating Instructions



DUAL PRO Part Number IS2412



Plug Style ring
AC Input 85-264 volts
Input Frequency 50-60 Hz
Total Output 12 Amps
Battery System 24 Volts
Charge Style Fully Automatic
Dimensions 2.87"H x 4.91" W x 8.27"L
Weight - lbs 4.2
Warrantee 2 Year
AC Cord Length 6ft

$295.00
plus $20.95 shipping

DC Cable Length 5ft





DUAL PRO Part Number IS1220



Plug Style ring
AC Input 85-264 volts
Input Frequency 50-60 Hz
Total Output 20 Amps
Battery System 12 Volts
Charge Style Fully Automatic
Dimensions 2.87"H x 4.91" W x 8.27"L
Weight - lbs 4.2
Warrantee 2 Year
AC Cord Length 6ft

$321.00
plus $20.95 shipping

DC Cable Length 5ft





DUAL PRO Part Number IS2412SB50R



Plug Style SB-50
AC Input 85-264 volts
Input Frequency 50-60 Hz
Total Output 12 Amps
Battery System 24 Volts
Charge Style Fully Automatic
Dimensions 2.87"H x 4.91" W x 8.27"L
Weight - lbs 4.2
Warrantee 2 Year
AC Cord Length 6ft

$295.00
plus $20.95 shipping

DC Cable Length 5ft




   Industrial Series

Pro Charging Systems currently serves a diverse mix of industrial clients and continues to add new clients from a wide range of industries. More and more companies are turning to Pro Charging Systems due to the company's innovative charger designs and state of the art firmware engineered to make batteries perform better and last longer. In short, Pro Charging Systems battery chargers improve the performance of battery powered industrial equipment for manufacturers and their clients.

In addition to the "best in class" Eagle Performance Series of battery chargers, Pro Charging Systems now offers the Industrial Series of battery chargers in one, two and three bank configurations. The Industrial Series chargers leverage advanced charging algorithms to intelligently charge batteries to optimum levels enabling equipment to to stay in service longer before needing charging. Through the careful management of specific gravity levels, these chargers also extend the life of batteries reducing the need for costly replacement. Clearly, the Industrial Series of battery chargers can save your company the two precious commodities of time and money.

Product Features

  • Approved for Wet Cell and Absorbed Glass Mat (AGM) batteries
  • Dependable, rugged construction and waterproof
  • Independent outputs and fully automatic
  • Battery maintenance mode
  • Two year warranty
  • DC charge cables = 5ft and AC power cord = 3ft
  • Approved and meets ISO 8846 Marine standards
  • Models available to charge 12-36V systems
  • LED lights indicate "Each Battery's" state of charge
  • Reverse polarity protected and no installation restrictions
  • Ignition protected (US Coast Guard 33 CFR 183.410)
  • FCC 15 Parts A and B Interference Compliant

While the Industrial Series of battery chargers have wide application, examples of current applications for the Industrial Series include:

  • Genie Aerial Work Platforms
  • JLG Vertical Mast Lifts
  • Reachmaster Aerial Lifts
  • U-Dump Heavy Duty Trailers
  • Vestil Lifts and Booms
