Do YOU Really need a new charger?  Trying to charge dead batteries will not work!
There has to be a minimum voltage in the batteries or the charger will not work!
Older Lester chargers need about 70% of normal charge
 and the newer chargers made beginning in 2004 need to sense only 5 volts
For the Quick Chargers - on boards 50% - 10 volts on the portables!
For the NEW SUMMIT II Charger - they require 12 volts to work!

Home | Shipping & Returns | About Us | Contact Us |

THE DESTRUCTION OF
AMERICA IS OVER 50%
 COMPLETE!  Do not FEAR
keep looking UP!  The answer
is knowing and loving and
declaring Jesus Christ!!!
We were born with an autopilot set toward Hell. It is nothing to take lightly - Hell is the single greatest tragedy in the universe - REPENT and Choose Christ Today!

Home
Up
Daily Success is Possible
Seeking to Honor GOD
Lester Battery Chargers
Lester Summit II Battery Chargers
Lester Charger Parts
PBM Battery Chargers
Privacy Policy
Shipping and Returns
Contact Us
About Us
Thank you for your payment!
Canada Shipping and other Countries
Solution Graphics Chat with me



100 AMP CHARGERS

PDF (QSETX) Operating Instructions

 NORMAL SHIPPING IS 7 TO 21 DAYS DEPENDING ON THE TIME OF THE YEAR - RIGHT NOW 14 TO 21 DAYS.IF YOU ARE WILLING TO PAY FOR 2ND DAY AIR, THEY WILL BUILD AND SHIP YOUR UNIT THE SAME OR NEXT DAY.



Forklifts and all Industrial Applications.

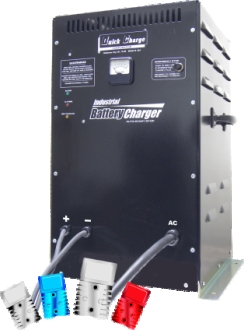

These chargers are designed for 750-1100 amp hour batteries. The efficient heavy duty transformer and rectifiers require no fans, and give years of trouble free service. AUTO START/STOP. LED indicators. DC ammeter. When service is necessary, the modular construction allows for easy field service. Or use our rapid return factory service. Your choice of DC connectors



3 YEAR WARRANTY.  Made in U.S.A.


Charge Profiles:



Gas & timed shut off: Timer trips at 2.3 gassing threshold. Batteries are allowed to gas to a maximum of 2.55 volts per cell before shut off. Best for deep cycle batteries






Model DC
VOLTS
DC
AMPS
AC
POWER
Dimensions
H.D.W. in.
WEIGHT BATTERY CAPACITY COST BUY
SC12100 12 100 115v 60hz.
12 amps
24 x 14 x 15 85 750-1100 Amp Hour $1073.99
SCX24100 24 100 230v 60hz.
12 amps
24 x 14 x 15 95 750-1100 Amp Hour $1275.99
SCX32100 32 100 230v 60hz.
15amps
24 x 14 x 15 100 750-1100 Amp Hour $1452.99
SCX36100 36 100 230v 60hz.
15amps
24 x 14 x 15 100 750-1100 Amp Hour $1452.99
SCX48100 48 100 230v 60hz.
20 amps
24 x 14 x 15 110 750-1100 Amp Hour $1492.99


PLUS ACTUAL SHIPPING
 CHARGES
a separate request for funds will
 be sent upon shipment
