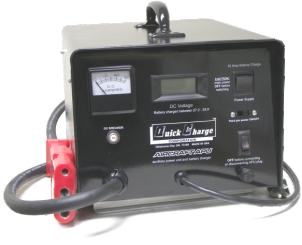

AIRCRAFT APU & CHARGER
Available with plug as shown, or Piper
plug.
PDF Product Literature
PDF Operating Instructions
Where to buy
 |
Supplies filtered DC bus power when master
switch is activated. A must for checking aircraft controls and avionics.
Also is a 10 amp battery charger through the APU receptacle. DC ammeter,
and digital voltmeter indicators. Output is Current limited, and will
withstand starting loads. Voltage is limited to prevent battery
overcharging.
Available in Three models:
Warranty: (3) years.
| Model |
DC
VOLTS |
DC
AMPS |
AC
POWER |
Dimensions
H.D.W. in. |
WEIGHT |
COST |
BUY |
| APU14V/25A |
14 |
25 |
117v 60hz.
3 amps |
8.5 x 10 x 12 |
22 |
$667.95 plus $21.99 shipping |
|
|
APU28V/25A |
28 |
25 |
117v 60hz.
6amps |
8.5 x 10 x 12 |
35 |
$788.95 plus $34.99 shipping |
|
|
APU28V/50A |
28 |
50 |
117v 60hz.
12 amps |
8.5 x 12 x 12 |
47 |
$1036.95 plus $43.99 shipping |
|
|
