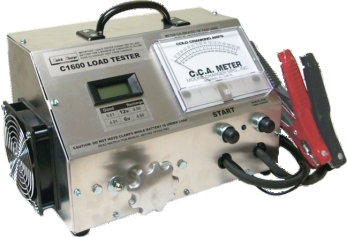

C1600 BATTERY LOAD TESTER

PDF Product Literature

PDF Operating Instructions



ONLY $908.99
plus $19.99 shipping

We call it the "GODZILLA" of load testers. Built for high volume continuous duty use.  Test hundreds of 6, 8, or 12 volt starting or deep cycle batteries non stop. Capacity up to 1600 cold cranking amps.

Made in U.S.A.    1 year warranty.


Large 2” x 5” x 6” Deep Carbon Pile.



Electronically Timed And Adjustable,



5-15 Seconds.



LCD Volt meter accurate to 500th of a volt



Chemical Proof Heavy Duty Start/Stop Buttons.



Two Continuous Running Cooling Fans.



800 Amp Clamps on 48" #2 cables



Dimensions -H.W.D - 8.5" x 14" x 11"



Weight 20 pounds




BATTERY DISCHARGERS






BD6812 inst

 ONLY $516.99
plus $19.99 shipping

BD1224 inst

 ONLY $490.99
plus $19.99 shipping

BD3648 inst

 ONLY $504.95
plus $19.99 shipping





BDM6812 inst

 ONLY $302.99
plus $13.99 shipping


Discharge 6, 8, 12 Volt
AGM & GEL Batteries
10 to 150 Amp Hour.
Volts, Amps, Time Readout

Tests deep cycle battery capacity as a percent of reserve capacity. Detects bad cells. Built in thermal protection.



*Microprocessor Controlled



* No AC Power Required



* User Adjustable Voltage and Time Cut Off



*LCD Display



*Fan Cooled



*8' #4 leads



*200 Amp Clamps



Made in U.S.A.  2 year warranty



MODEL DC VOLTS Discharge Rate
DC AMPS
     DIMENSIONS

      H.W.D. INCHES

WEIGHT LBS.

  BD6812

6-8-12

25-56-75

7 X 8 X 22

16

  BD1224

12-24

75

7 X 8 X 22

16

  BD3648

36-48

56-75

7 X 8 X 22

16

  BDM6812

6-8-12

2.5-5-10-25

7.5 X 6 X 6.5

5

 NORMAL SHIPPING IS 7 TO 21 DAYS DEPENDING ON THE TIME OF THE YEAR - RIGHT NOW 14 TO 21 DAYS.  IF YOU ARE WILLING TO PAY FOR 2ND DAY AIR, THEY WILL BUILD AND SHIP YOUR UNIT THE SAME OR NEXT DAY.
