Let us help you find the right charger for your application

WARNING!!
Do you REALLY need a new charger? Trying to charge dead batteries will not work!
There has to be a minimum voltage in the batteries or the charger will not work!
Older Lester chargers need about 70% of normal charge

and the newer chargers made beginning in 2004 need to sense only 5 volts
Quick Charge on board chargers need 50%
Quick Charge portables need 10 volts

 NEW SUMMIT II Chargers require 12 volts to work!



Home | Shipping & Returns | About Us | Contact Us |



Home
Up
Daily Success is Possible
Lester Summit II Battery Chargers
Lester Charger Parts
Lester Battery Chargers
Taylor-Dunn Chargers
Yamaha Chargers
PBM Battery Chargers
ChargePlus Battery Chargers
DPI Chargers, Inverters and Converters
PowerMAX Converters and Chargers
Pro Charging Systems - Dual Pro Chargers
Canada Shipping and other Countries
Solution Graphics

 NORMAL SHIPPING IS 7 TO 21 DAYS DEPENDING ON THE TIME OF THE YEAR - RIGHT NOW 14 TO 21 DAYS.  IF YOU ARE WILLING TO PAY FOR 2ND DAY AIR, THEY WILL BUILD AND SHIP YOUR UNIT THE SAME OR NEXT DAY.

Parallel Charger
Model QPA12v/50A is designed with maximum flexibility. The adjustable current control means it can
 charge groups of wet cell's, AGM's, or gel batteries requiring as little as one amp each or put as much
 as 50 amps into one battery. The adjustable voltage control means you can control final voltage with
 precision. Equipped with ammeter, and digital voltmeter for battery monitoring. Safety features include
 reverse polarity protection, and current limiting.



Model QPA12v/50A

PDF Operating Instructions

PDF Product literature

Only $606.95
plus $34.99 shipping



Specs:

H.W.D.

 8" x 12" x 12"

Weight:

36 lbs.

Input:

117vac 60 Hz. 9 amps

Output:

12v, 1-50 amps. Finish voltage adjustable from 13.0 - 15.5



          3 YEAR WARRANTY.  Made in U.S.A.

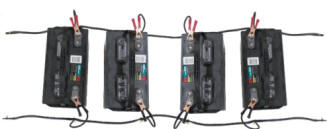

Typical layout using the Quick Charge Corp. Parallel Bus cable set.

(4) batteries would receive approx 12 amps with charger turned wide open.





               Parallel Bus cable set.

Consists of (2) #6 cables 10' long, (10) red and (10) black clips on 12" #10 gauge leads, attached to cable by brass wing nuts spaced 10" apart.

Only $348.95 when purchased with Charger
