Do YOU Really need a new charger?  Trying to charge dead batteries will not work!
There has to be a minimum voltage in the batteries or the charger will not work!
Older Lester chargers need about 70% of normal charge
 and the newer chargers made beginning in 2004 need to sense only 5 volts
For the Quick Chargers - on boards 50% - 10 volts on the portables!
For the NEW SUMMIT II Charger - they require 12 volts to work!

Home | Shipping & Returns | About Us | Contact Us |

THE DESTRUCTION OF
AMERICA IS OVER 50%
 COMPLETE!  Do not FEAR
keep looking UP!  The answer
is knowing and loving and
declaring Jesus Christ!!!
We were born with an autopilot set toward Hell. It is nothing to take lightly - Hell is the single greatest tragedy in the universe - REPENT and Choose Christ Today!

Home
Up
Daily Success is Possible
Seeking to Honor GOD
Lester Battery Chargers
Lester Summit II Battery Chargers
Lester Charger Parts
PBM Battery Chargers
Privacy Policy
Shipping and Returns
Contact Us
About Us
Thank you for your payment!
Canada Shipping and other Countries
Solution Graphics Chat with me

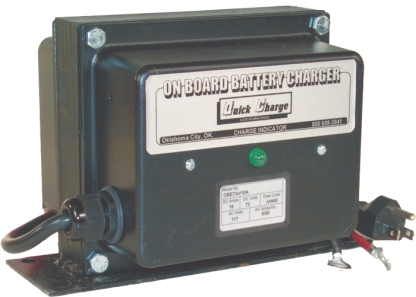

    ON BOARD CHARGERS

large - 25, 35, 40 amp

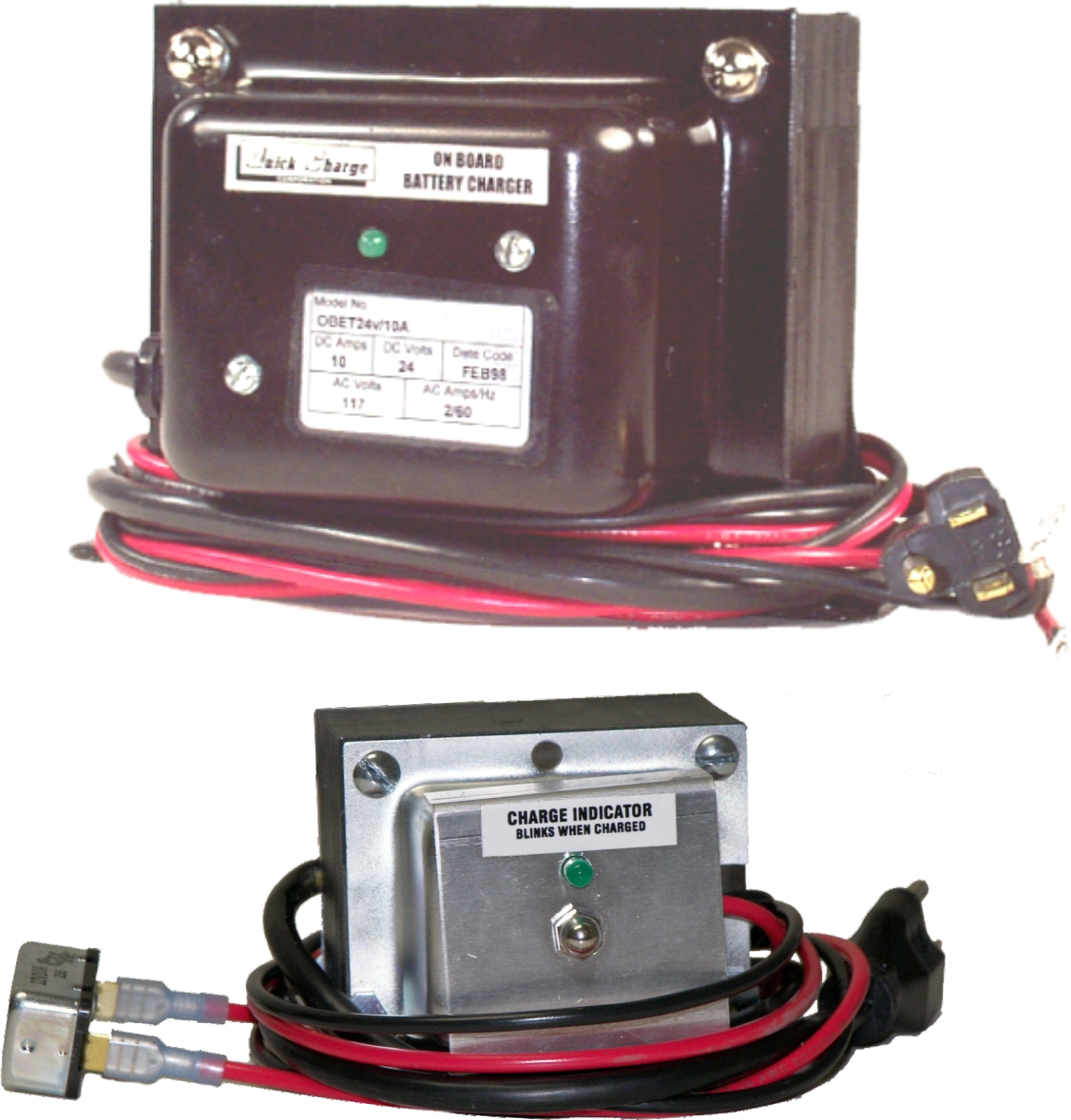

small - 5, 6, 10, 12, 15 amp

PDF Product Literature

PDF (OBE) Operating Instructions

PDF (OBET) Operating Instructions

PDF (OBAE, OBAGM) Operating Instructions

Scissor Lifts, Floor Scrubbers, Engine Standby Generators, Railroads, Pallet Jacks, Electric Vehicles, RV's, Oil field, Mining


#1 REPLACEMENT CHARGER, FITS ANYWHERE



Small And Compact:

Fits Slim Scissors, mounts in any direction



Vibration Resistant:

No moving parts, and an integral design



Rugged Construction:

Totally enclosed to resist the effects of water,

dirt, and a harsh environment. Pressure washer proof



Near bullet proof:

Tough die cast enclosure



Energy Efficient:

As much as 25% savings over ferroresonant chargers

Made in U.S.A.


Charge Profiles:

Float (OBE): Regulates the battery voltage at 2.3 volts per cell @ 70 degrees F. Temperature compensating. Best for starting batteries, and gel's.  This charger provides a continuous preset voltage determined by the model you buy.

Gas & timed shut off (OBET)
:
 Timer trips at 2.3vpc, gassing threshold. Batteries are allowed to gas to a maximum of 2.55vpc before shut off. Best for deep cycle batteries. This charger provides a one time charge per plug in cycle.  Plug, charge, then go.

Gas & float (OBAE): Timer trips at 2.3vpc, gassing threshold. Batteries are allowed to gas to a maximum of 2.55vpc before dropping into indefinite float of 2.26vpc. Best for deep cycle batteries uesd in golf carts and portable equipment like floor scrubbers and sissor lifts that may see long periods of inactivity.  This charger provides a one time charge then a float charge.

AGM (OBAGM): Batteries bulk charge to 2.3vpc, and enter absorption cycle where voltage is allowed to climb to a maximum 2.45vpc before dropping into indefinite float of 2.26vpc.  This charger provides a one time charge then float charge. For AGM batteries.

Other volt/amp combinations available upon request.

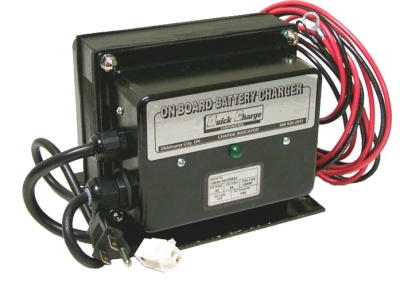

Model OBAE24v/25ASJ   Model OBAE24v/25AGN

 Skyjack P.N. 128537        Genie P.N. 96211


24 volt 25 amp replacements for SKYJACK and GENIE scissor lifts. Mounting plate matches OEM charger, no holes to drill. Includes drive lockout circuit.



                     All chargers come with 24" 3 prong AC cord, and 6' color coded DC leads with 3/8" ring terminals


OBAGM, OBET,
 OBAE (for deep cycle golf carts and portable equipment) models being

 replaced by OB programmable model.

OBE (float) for starting batteries still available on lower chart.

For an extra $50 you can get this Alarm System on any
On-Board charger 25 AMPS or greater.  Watch Video
With this feature on your charger you will not have to
replace your batteries early due to neglect - IT WILL tell
you CHARGE ME before sulfation ocurs.


PROGRAMABLE MODELS BELOW - uses dip switches
normally set to OBAE when shipped out!
Model DC
VOLTS
DC
AMPS
AC
POWER
Dimensions
H.D.W. in.
WEIGHT BATTERY CAPACITY
@ 20 Hr.rate
COST BUY
OB1210
can replace
15480-xxx
for Genie
12 10 117v 60hz.
2 amps
4.5 x 7 x  5.5 11 80-150 Amp Hour $145.99 plus $13.99 shipping 2
OBXU1210
can replace
15480-xxx
for Genie
12 10 220/230v 60hz.
1 amps
4.5 x 7 x  5.5 11 80-150 Amp Hour $155.99 plus $13.99 shipping 2
OB1210
can replace
18730
for Genie
12 10 117v 60hz.
2 amps
4.5 x 7 x  5.5 11 80-150 Amp Hour $145.99 plus $13.99 shipping 2
OB1215
can replace
18730
for Genie
12 15 117v 60hz.
2amps
4.5 x 7 x  5.5 11 80-150 Amp Hour $159.99 plus $13.99 shipping 2
OB1225 12 25 117v 60hz.
3 amps
6 x 9 x  5.5 18 150-350 Amp Hour $272.99 plus $16.99 shipping 5
OB1235 12 35 117v 60hz.
5 amps
6 x 9 x  8.5 27 220-450 Amp Hour $331.99 plus $28.99 shipping 7
OB1250 12 50 117v 60hz.
8 amps
6 x 9 x 9 36 350-550 Amp Hour $391.99 plus $34.99 shipping 8
OB246 24 6 117v 60hz.
3 amps
4.5 x 7 x  5.5 11 50-120 Amp Hour $145.99 plus $13.99 shipping 1
OB2410 24 10 117v 60hz.
3 amps
4.5 x 7 x  6.5 15 80-150 Amp Hour $207.99 plus $16.99 shipping 3
OB2415 24 15 117v 60hz.
4 amps
4.5 x 7 x  6.5 15 80-150 Amp Hour $218.99 plus $16.99 shipping 3
OB2425 Can be used on Snorkel and others
Base
9" x  3"
24 25 117v 60hz.
6 amps
6 x 9 x  8.5  26 150-350 Amp Hour $334.99 plus $28.99 shipping 6
OB2425GN
Gennie
96211
Base
9" x 6-3/4"
24 25 117v 60hz.
6 amps
6 x 9 x 6.5 26 150-350 Amp Hour
w/lock out feature
$360.99 plus $28.99 shipping 6
OB2425GN
Signet
HB600-24

Base
9" x 6-3/4"
24 25 117v 60hz.
6 amps
6 x 9 x 6.5 26 150-350 Amp Hour
w/lock out feature
$360.99 plus $28.99 shipping 6
OB2425SJ
Skyjack
128537
24 25 117v 60hz.
6 amps
6 x 9 x 6.5 26 150-350 Amp Hour
w/lock out feature
$360.99 plus $28.99 shipping 6
OB2440 24 40 117v 60hz.
10 amps
6 x 9 x  9 36 250-450 Amp Hour $403.99 plus $34.99
shipping
8
OB2440GN
Gennie
24 40 117v 60hz.
10 amps
6 x 9 x  9 36 250-450 Amp Hour
w/lock out feature
$432.99 plus $34.99 shipping 8
OB2440GN
Skyjack
24 40 117v 60hz.
10 amps
6 x 9 x  9 36 250-450 Amp Hour
w/lock out feature
$432.99 plus $34.99 shipping 8
OB3225 32 25 117v 60hz.
9 amps
6 x 9 x 7 34 150-350 Amp Hour $381.99 plus $32.99 shipping 9
OB3235 32 35 117v 60hz.
12 amps
6 x 9 x 8 43 220-450  Amp Hour $463.99 plus $39.99 shipping 10
OB3612 36 12 117v 60hz.
4 amps
4.5 x 7 x 7.5 18 80-175 Amp Hour $229.99 plus $16.99 shipping 4
OB3615 36 15 117v 60hz.
8 amps
6 x 9 x 6.5 26 80-175 Amp Hour $333.99 plus $28.99 shipping 4
OB3625 36 25 117v 60hz.
9 amps
6 x 9 x 7 34 150-350 Amp Hour $381.99 plus $32.99 shipping 9
OB3625TD
replacement for
Taylor-Dunn
79-303-40 & 41
36 25 117v 60hz.
9 amps
6 x 7.625 x 7 36 150-350 Amp Hour $409.99 plus $32.99 shipping
OB3625LO
rep for
893090
17670
36 25 117v 60hz.
9 amps
6 x 9 x 7 34 150-350 Amp Hour $409.99 plus $32.99 shipping 9
OB3635 36 35 117v 60hz.
12 amps
6 x 9 x 8 43 220-450 Amp Hour $463.99 plus $41.99 shipping 10
OB3640 36 40 117v 60hz.
12 amps
6 x 9 x 8 45 220-450 Amp Hour $539.99 plus $43.99 shipping 10
OB4815 48 15 117v 60hz.
6 amps
6 x 9 x 8 26 80-180 Amp Hour $343.99 plus $28.99 shipping 6
OB4815TD
w/ LockOut
48 15 117v 60hz.
6 amps
6 x 9 x 8 26 80-180 Amp Hour $373.99 plus $28.99 shipping 6
OB4825 48 25 117v 60hz.
12 amps
6  x 9 x 8 42 150-350 Amp Hour $429.99 plus $38.99 shipping 12
OB4840 48 40 117v 60hz.
23 amps
7.25  x 10.5 x 13 48 150-350 Amp Hour $553.99 plus $45.99 shipping
OB6420 64 20 117v 60hz.
14 amps
6  x 9 x 8 42 150-300 Amp Hour $429.99 plus $38.99 shipping 12
OB7210 72 10 117v 60hz.
6 amps
6  x 9 x 6.5 26 80-150 Amp Hour $363.99 plus $28.99 shipping 6
OB7220 72 20 117v 60hz.
14 amps
6  x 9 x 8 42 150-300 Amp Hour $429.99 plus $38.99 shipping 12


Model DC
VOLTS
DC
AMPS
AC
POWER
Dimensions
H.D.W. in.
WEIGHT BATTERY CAPACITY
@ 20 Hr.rate
COST BUY
OBE1210 12 10 117v 60hz.
2 amps
4.5 x 7 x  5.5 11 80-150 Amp Hour $145.99 plus $13.99 shipping 2
OBE1215 12 15 117v 60hz.
2amps
4.5 x 7 x  5.5 11 80-150 Amp Hour $159.99 plus $13.99 shipping 2
OBE1225 12 25 117v 60hz.
3 amps
6 x 9 x  5.5 18 150-350 Amp Hour $272.99 plus $16.99 shipping 5
OBE1235 12 35 117v 60hz.
5 amps
6 x 9 x  8.5 27 220-450 Amp Hour $331.99 plus $28.99 shipping 7
OBE1250 12 50 117v 60hz.
8 amps
6 x 9 x 9 36 350-550 Amp Hour $391.99 plus $34.99 shipping 8
OBE246 24 6 117v 60hz.
3 amps
4.5 x 7 x  5.5 11 50-120 Amp Hour $145.99 plus $13.99 shipping 1
OBE2410 24 10 117v 60hz.
3 amps
4.5 x 7 x  6.5 15 80-150 Amp Hour $207.99 plus $16.99 shipping 3
OBE2415 24 15 117v 60hz.
4 amps
4.5 x 7 x  6.5 15 80-150 Amp Hour $218.99 plus $16.99 shipping 3
OBE2425 24 25 117v 60hz.
6 amps
6 x 9 x 6.5 26 150-350 Amp Hour $334.99 plus $28.99 shipping 6
OBE2440 24 40 117v 60hz.
10 amps
6 x 9 x  9 36 250-450 Amp Hour $403.99 plus $34.99
shipping
8
OBE3225 32 25 117v 60hz.
9 amps
6 x 9 x 7 34 150-350 Amp Hour $381.99 plus $32.99 shipping 9
OBE3235 32 35 117v 60hz.
9 amps
6 x 9 x 8 43 220-450  Amp Hour $463.99 plus $39.99 shipping 10
OBE3612 36 12 117v 60hz.
4 amps
4.5 x 7 x 7.5 18 80-175 Amp Hour $229.99 plus $16.99 shipping 4
OBE3625 36 25 117v 60hz.
9 amps
6 x 9 x 7 34 150-350 Amp Hour $381.99 plus $32.99 shipping 9
OBE3635 36 35 117v 60hz.
12 amps
6 x 9 x 8 42 220-450 Amp Hour $463.99 plus $38.99 shipping 10
OBE4815 48 15 117v 60hz.
6 amps
6 x 9 x 8 26 80-180 Amp Hour $343.99 plus $28.99 shipping 6
OBE4825 48 25 117v 60hz.
12 amps
6  x 9 x 8 42 150-350 Amp Hour $429.99 plus $38.99 shipping 12
OBE4840 48 40 117v 60hz.
23 amps
7.25  x 10.5 x 13 48 150-350 Amp Hour $553.99 plus $45.99 shipping
OBE6420 64 20 117v 60hz.
14 amps
6  x 9 x 8 42 150-300 Amp Hour $429.99 plus $38.99 shipping 12
OBE7210 72 10 117v 60hz.
6 amps
6  x 9 x 6.5 26 80-150 Amp Hour $363.99 plus $28.99 shipping 6
OBE7220 72 20 117v 60hz.
14 amps
6  x 9 x 8 42 150-300 Amp Hour $429.99 plus $38.99 shipping 12



All models available in 220/230 v 50 Hz. for $25 more
