Do YOU Really need a new charger?  Trying to charge dead batteries will not work!
There has to be a minimum voltage in the batteries or the charger will not work!
Older Lester chargers need about 70% of normal charge
 and the newer chargers made beginning in 2004 need to sense only 5 volts
For the Quick Chargers - on boards 50% - 10 volts on the portables

THE DESTRUCTION OF
AMERICA IS OVER 50%
 COMPLETE!  Do not FEAR
keep looking UP!  The answer
is knowing and loving and
declaring Jesus Christ!!!
We were born with an autopilot set toward Hell. It is nothing to take lightly - Hell is the single greatest tragedy in the universe - REPENT and Choose Christ Today!

Up
Daily Success is Possible
Lester Battery Chargers
Lester Links Battery Chargers
Lester Summit Battery Chargers
Lester Charger Parts
Quick Charge Battery Chargers
ChargePlus Battery Chargers
DPI Chargers, Inverters and Converters
IOTA Chargers/Converters
PowerMAX Converters and Chargers
Club Car Chargers
Cushman Chargers
EZGO Chargers
Taylor-Dunn Chargers
Yamaha Chargers
Charger Controller
Prestolite Charger Parts
Battery Chargers
Thunderbull Battery Chargers
Shopping Cart Bypass Page
Solution Graphics Chat with me

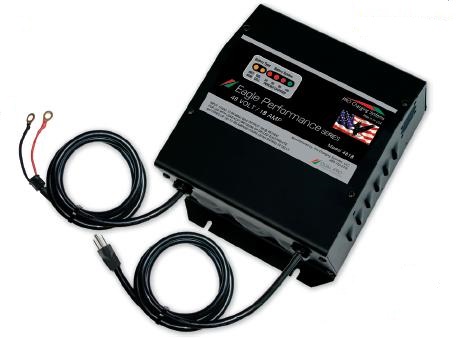

All - PRO Charge Eagle Performance Series On-Board Chargers
come with Ring Terminals or an SB50 Plug if requested
Other plug styles are available.
Standard SB50 colors are 12 volt - Yellow,
24 volt Red, 36 Volt - Grey, 48 Volts - Blue

NOW with DeltaView LINK!
Intuitive Charge History Analysis from your phone

  Model Volts Amps Dimensions Wt Cost Buy
i2420OBRM
JLG - Scissor Lifts
1930ES, 2030ES, 2630ES
2646ES, 3213ES
Generation 1 ES Lifts
Part Numbers: 0400218
0400220
24 20 5.75Hx8.5Wx9L 19 $399.99 plus $24.95 shipping
i2420OBRMBIL 24 20 5.75Hx8.5Wx9L 19 $399.99 plus $24.95 shipping

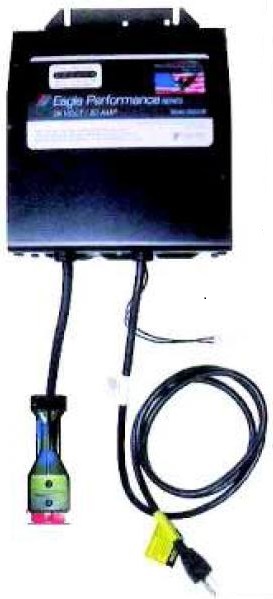

i2420OBRMCF 24 20 5.75Hx8.5Wx9L 19 $399.99 plus $24.95 shipping

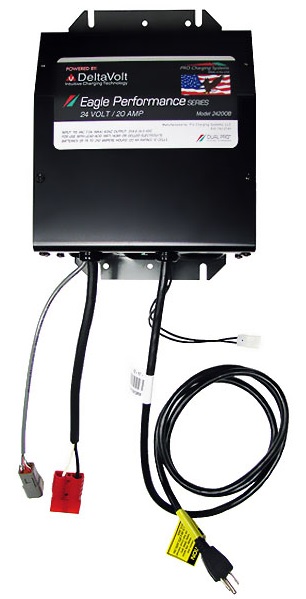

i2420OBRMJLG
JLG - Scissor Lifts
1230ES, 1930ES, 2030ES
2630ES, 2646ES, 3246ES
Generation 3 ES Lifts
0400238, 10011112111
1001128737
24 20 5.75Hx8.5Wx9L 19 $399.99 plus $24.95 shipping
  i2420OBRMIECJLG 24 20 5.75Hx8.5Wx9L 19 $399.99 plus $24.95 shipping
  i2420OBRMIECRSJLG 24 20 5.75Hx8.5Wx9L 19 $399.99 plus $24.95 shipping

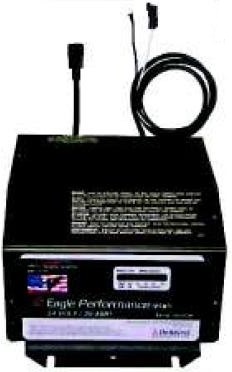

i2420OBRMJLGTTB 24 20 5.75Hx8.5Wx9L 19 $399.99 plus $24.95 shipping
i2420OBRMJLGE
JLG - Scissor Lifts
1532E, 1932E, 2033E,
2046E, 2046E, 2658E
Part Numbers:
2901844 or 2901846
24 20 5.75Hx8.5Wx9L 19 $439.99 plus $24.95 shipping

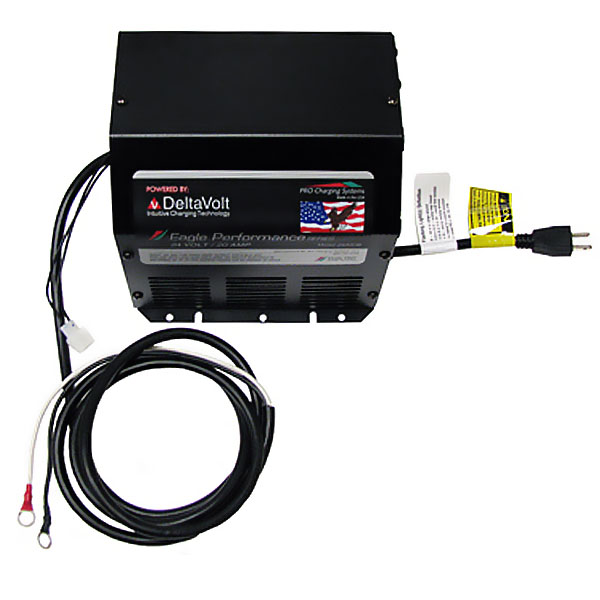

i2420OBRMLIFT
JLG - Scissor Lifts
1532E2, 1932E2, 2032E2
2632E2, 2646E2, 3246E2
1532E3, 1932E3, 2032E3
2632E3, 2646E3, 3246E3
Part Numbers: 0400170
0400177, 0400178, 0400179, 0400204
Genie - Scissor Lifts
GS-1530, GS-1930,
GS-3032, GS-2046,
GS-2632, GS-2646,
S-3232, GS-3246
Part Numbers: 66412
105739
Aerial Work Platform
DLP-25S, DLP-30S
DLP-35S
Part Numbers: 8029
8030
24 20 5.75Hx8.5Wx9L 19 $399.99 plus $24.95 shipping
i2420OBRMLIFTIEC
Genie - Scissor Lifts
GS-1530, GS-1930,
GS-3032, GS-2046,
GS-2632, GS-2646,
S-3232, GS-3246
Part Numbers: 66412
105739 Manufactured 2011 or later
24 20 5.75Hx8.5Wx9L 19 $399.99 plus $24.95 shipping
i2420OBRMBPT 24 20 5.75Hx8.5Wx9L 19 $519.99 plus $24.95 shipping
  Model Volts Amps Dimensions Wt Cost Buy

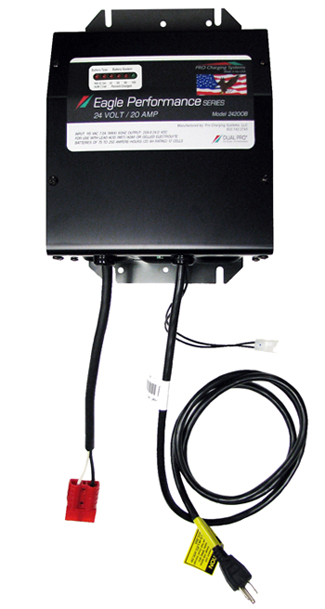

i2425OBRM
JLG - Scissor Lifts
1930ES, 2030ES, 2630ES
2646ES, 3213ES
Generation 1 ES Lifts
Part Numbers: 0400218
0400220
24 25 5.75Hx8.5Wx9L 22 $519.99 plus $28.95 shipping
i2425OBRMBIL 24 25 5.75Hx8.5Wx9L 22 $519.99 plus $28.95 shipping
i2425OBRMCF 24 25 5.75Hx8.5Wx9L 22 $519.99 plus $28.95 shipping
i2425OBRMJLG
JLG - Scissor Lifts
1230ES, 1930ES, 2030ES
2630ES, 2646ES, 3246ES
Generation 3 ES Lifts
0400238, 10011112111
1001128737
24 25 5.75Hx8.5Wx9L 22 $519.99 plus $28.95 shipping
  i2425OBRMIECJLG 24 25 5.75Hx8.5Wx9L 22 $519.99 plus $28.95 shipping
  i2425OBRMIECRSJLG 24 25 5.75Hx8.5Wx9L 22 $519.99 plus $28.95 shipping
i2425OBRMJLGTTB 24 25 5.75Hx8.5Wx9L 22 $519.99 plus $28.95 shipping
i2425OBRMJLGE
JLG - Scissor Lifts
1532E, 1932E, 2033E,
2046E, 2046E, 2658E
Part Numbers:
2901844 or 2901846
24 25 5.75Hx8.5Wx9L 22 $399.99 plus $28.95 shipping
i2425OBRMLIFT
JLG - Scissor Lifts
1532E2, 1932E2, 2032E2
2632E2, 2646E2, 3246E2
1532E3, 1932E3, 2032E3
2632E3, 2646E3, 3246E3
Part Numbers: 0400170
0400177, 0400178, 0400179, 0400204
Genie - Scissor Lifts

GS-1530, GS-1930,
GS-3032, GS-2046,
GS-2632, GS-2646,
S-3232, GS-3246
Part Numbers: 66412
105739
Aerial Work Platform
DLP-25S, DLP-30S
DLP-35S
Part Numbers: 8029
8030
24 25 5.75Hx8.5Wx9L 22 $519.99 plus $28.95 shipping
i2425OBRMLIFTIEC
Genie - Scissor Lifts

GS-1530, GS-1930,
GS-3032, GS-2046,
GS-2632, GS-2646,
S-3232, GS-3246
Part Numbers: 66412
105739 Manufactured 2011 or later
24 25 5.75Hx8.5Wx9L 22 $519.99 plus $28.95 shipping
i2425OBRMTD 24 25 5.75Hx8.5Wx9L 22 $529.99 plus $28.95 shipping
i2425OBRMBPT 24 25 5.75Hx8.5Wx9L 22 $549.99 plus $28.95 shipping
i2425OBRMBPS 24 25 5.75Hx8.5Wx9L 22 $549.99 plus $28.95 shipping
  i2425OBRMBPTW 24 25 5.75Hx8.5Wx9L 22 $559.99 plus $28.95 shipping
  Model Volts Amps Dimensions Wt Cost Buy
i4815OBRMLIFT
Genie Scissor Lifts
GS-2668DC, GS-3268DC
Part Numbers: 36315
36316
48 15 5.75Hx8.5Wx9L 22 $529.99 plus $28.95 shipping
i4815OBRMLIFTIEC
Genie Scissor Lifts
GS-2668DC, GS-3268DC
Part Numbers: 36315
36316 Manufactured 2011 or later
48 15 5.75Hx8.5Wx9L 22 $529.99 plus $28.95 shipping
  i4818OB 48 18 5.75Hx8.5Wx9L 22 $424.99 plus $28.95 shipping
i4818OBRMJLGS400A 48 18 5.75Hx8.5Wx9L 22 $529.99 plus $28.95 shipping
i4818OBRMJLGSAJP 48 18 5.75Hx8.5Wx9L 22 $529.99 plus $28.95 shipping
i4818OBRMTD 48 18 5.75Hx8.5Wx9L 22 $499.99 plus $28.95 shipping

Installation and Operating Instructions


Eagle Performance Series

Eagle Performance Series chargers are specially designed for use in the industrial and electric vehicle markets. With over 18 years of experience in manufacturing the legendary Dual ProTM charging systems, Pro Charging Systems chargers have become known as the name in charging technologies. We pride ourselves on the performance and versatility of our products and our outstanding customer service. We are proud that these safe, reliable, and efficient battery chargers are made in the USA.

Battery Charging System Designed for the Demands of Recreational and Industrial Use

  • The "Green" Charger: Totally "Repairable" Not a Throw-Away
  • Unmatched Performance, Reliability, Safety and Quality
  • TROUBLE FREE - Just Plug It In and Forget It!
  • Join Over 750,000 of Our Satisfied Customers!
  • Fully Automatic and Water Resistant

Product Features

  • For use with Lead Acid (Wet/AGM) batteries
  • Easily reconfigured for Gelled Electrolyte batteries
  • Battery type LED indicator
  • Designed for tough duty applications
  • Dependable, rugged construction
  • Exclusive temperature compensation
  • Water resistant
  • Fully automatic with float maintenance
  • Reverse polarity spark free operation
  • Return to charge maintenance mode
  • Exclusive on board diagnostics
  • High visibility, easy to read charge indicators
  • Fan cooled
  • Optional "Universal" A/C input
